Key Specifications (Series-Wide)
- Travel Speed: 20 km/h across all models
- Load Centre: 500 mm
- Lifting Height (Range): D25NXS, D30NXS, D33NXS: 2,030–7,810 mm; D35NXS: 1,800–6,900 mm
- Engine Type: DI/DM02VA Stage‑5 diesel
Features & Performance Highlights
- High-Power, Efficient Engine: Produces 45.6 kW with strong torque at low RPMs for best-in-class travel and lift performance, with multi-torque modes (eco/standard/high) for flexible operation.
- Impressive Productivity: Excellent travel speed, lift speed, and up to 25% gradeability; high-torque engines accelerate climbing ramps with ease.

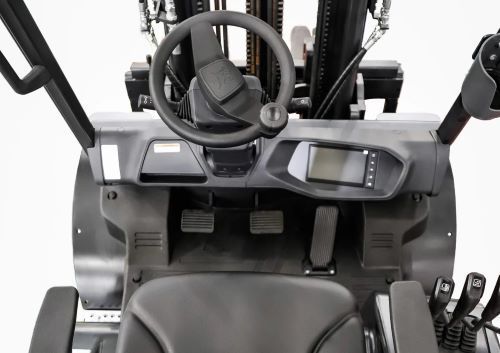

- Enhanced Ergonomics: Spacious cab with curved glass, low noise and vibration; Adjustable suspension seat and steering column; Large in-cab display (5-inch standard, 7-inch optional) for key machine data and settings; Optional rear camera for improved rear visibility
- Boosted Reliability: Tool-less access panels, centralized fuses and relays; Robust frame/mast, sealed overhead guard, optimized airflow for cooling; Smart Vehicle Control Unit (VCU) with diagnostics and update capability
Safety & Operator Assistance
- Operator Sensing System (OSS): Halts travel and mast functions when operator leaves the seat unless seatbelt is fastened.
- Hydraulic Mast Lock: Stops unintended lowering or tilting when operator is absent.
- Advanced Safety Options: Ground speed control, reverse lock, LED lighting, panoramic mirror, anti-slip entry plate, rear safety projections; Concealed tilt cylinders to reduce tipping risk
Serviceability & Support
- Fast Maintenance: Tool-free side panel and floor plate removal; Centralised electronic components; Easy radiator access and diagnostics via laptop plug-in
- Extended Uptime: Oil-cooled disc brakes with up to 20,000 h life; Long service intervals, high-quality components, strong dealer and parts network
- Warranty Options: Standard coverage 24 months or 2,000 operating hours, with optional extended Protection Plus for added peace of mind.
Why the NXS Series Stands Out
- Outstanding Value: Delivers core premium features—power, safety, ergonomics—at a simplified, cost-effective level.
- Real-World Performance: Optimized for climbing, lifting, and maneuvering in demanding environments.
- Operator Comfort & Safety: Reduces fatigue and increases workplace safety with thoughtful design and automation.
- Minimal Maintenance. Maximum Uptime: Easy servicing, durable components, and intelligent systems reduce overall cost of ownership.
