Bobcat Electric 4T–5T, 4-Wheel – 7-Series

• Load Capacities:

B40X‑7: 4,000 kg

B45X‑7: 4,500 kg

B50X‑7: 5,000 kg

B50XC‑7: 4,990 kg

Shared Features

• Load Centre: 500 mm
• Travel Speed: 16 km/h (unloaded)
• Battery Voltage: 80 V (Lead-acid/lithium‑ion)
• AC drive motor (approx. 28 kW for B45X‑7)
• Low total cost of ownership—high reliability and low maintenance

Why Choose This Range?

• Robust Power & Performance - These models are engineered for high-demand industrial applications, combining the strength and reliability of electric power with capabilities previously only available in diesel-powered forklifts.
• Low Operating Costs - Exceptional energy efficiency and minimal maintenance thanks to brushless AC motors and intelligent control systems.

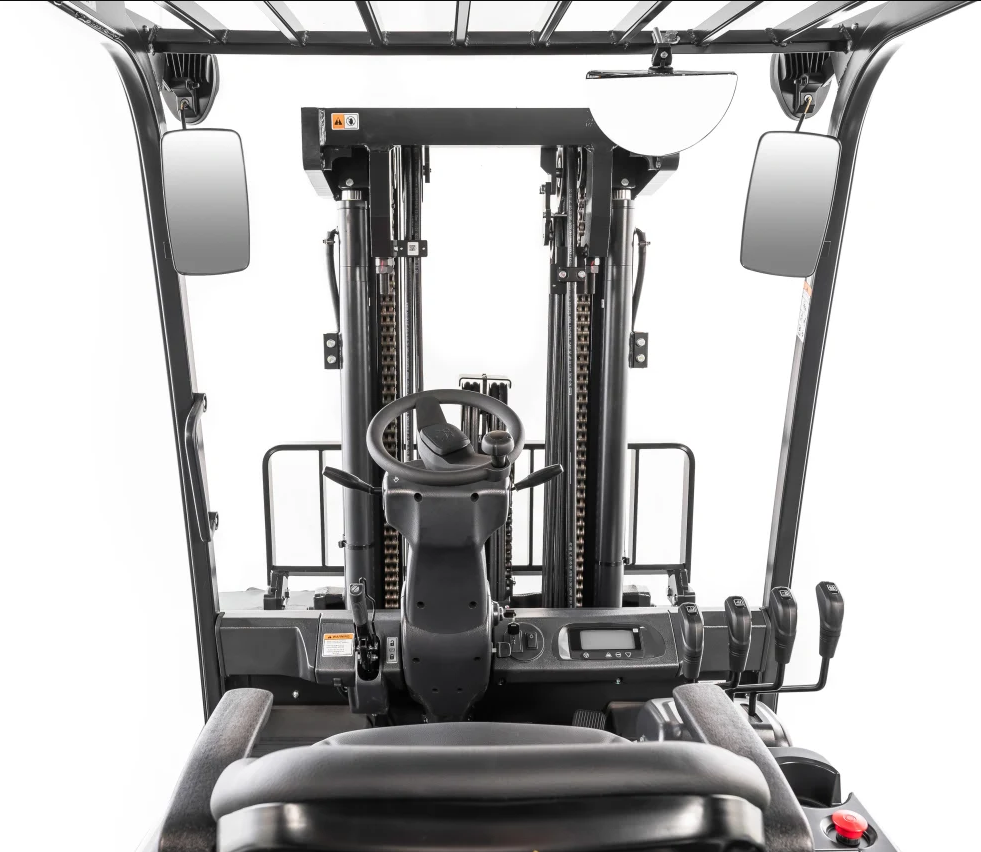

• Ergonomic & Safe Operator Experience - Spacious operator cabins, excellent visibility, intuitive programmable controls, and optional fingertip or hydraulic lever directional controls reduce fatigue and enhance precision.
• Built for Real-World Durability - Designed with rugged components, optional IP54 dust and water resistance, and long service life built-in for demanding material-handling environments.
• Versatile Power Options - Choose between traditional lead-acid batteries or fast-charging, long-life lithium-ion options to match your operational priorities.

B40X-7

• Capacity: 4,000 kg
• Load Centre: 500 mm
• Lifting Height Range: 3,000–6,050 mm
• Travel Speed: 16 km/h
• Best suited for: Warehouses and logistics centres needing a reliable mid-range forklift. Ideal for consistent pallet handling, loading docks, and general material transport where strength and manoeuvrability matter.

B45X-7

• Capacity: 4,500 kg
• Load Centre: 500 mm
• Lifting Height Range: 3,000–6,050 mm
• Travel Speed: 16 km/h
• Best suited for: Operations requiring a step up in lifting strength. Popular with manufacturing plants and distribution hubs managing heavier pallets and industrial loads without needing the maximum 5-tonne capacity.

B50X-7

• Capacity: 5,000 kg
• Load Centre: 500 mm
• Lifting Height Range: 3,000–6,500 mm
• Travel Speed: 16 km/h
• Best suited for: Heavy industrial applications such as steel yards, timber mills, or large warehouses where maximum load capacity and extended lift heights are crucial. Provides the strongest performance in the 7-Series 4-wheel electric range.

B50XC-7

• Capacity: 4,990 kg
• Load Centre: 500 mm
• Lifting Height Range: 3,000–6,500 mm
• Travel Speed: 16 km/h
• Best suited for: Businesses that need the high load capacity of the B50X-7 but prefer a variant designed for specialised use cases. Ideal for operators balancing efficiency, ergonomics, and demanding workloads across long shifts.
