BOBCAT 5-SERIES 6-9T DIESEL

Name: NEW Bobcat Forklift 5-Series 6-9T Diesel
Brand: Bobcat
Availability: InStock
Rating: 5 (1 reviews)

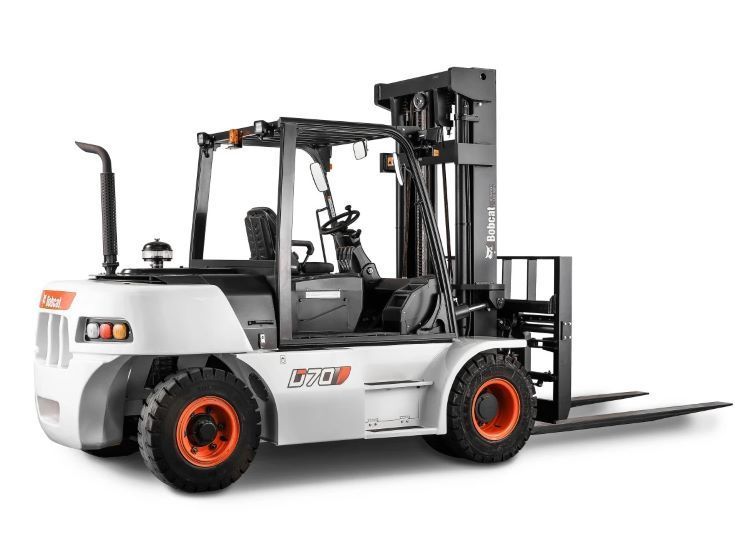

White and black forklift with extended forks, orange wheels, and a black cab, positioned on a white background.

White and black industrial forklift with orange wheels, forks extended, against a white background.

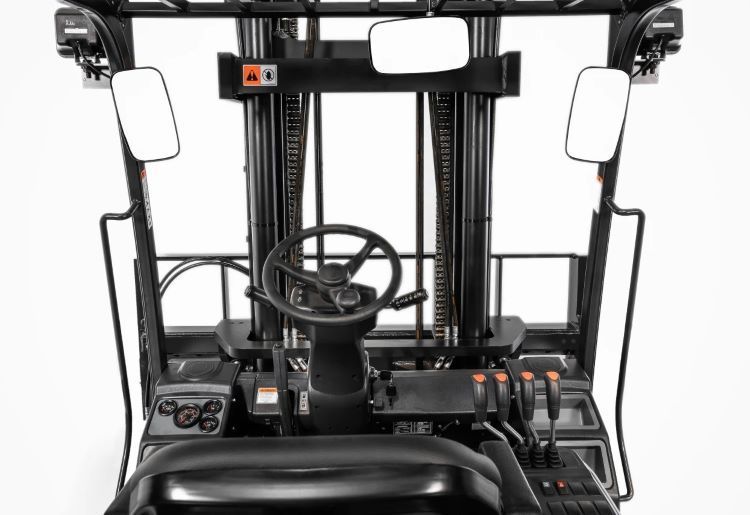

Interior of a black forklift, with steering wheel, controls, and side mirrors.

Ask for Price

Call us to ask for accurate price, or fill in the form and we'll call you back.

Contact Us

Bobcat’s 5-Series 6–9 tonne diesel forklifts deliver powerful performance for heavy-duty material handling. Designed for moving large, demanding loads with ease, these robust industrial machines feature a spacious operator cab for superior comfort throughout long shifts. The advanced diesel engines combine high output with low emissions and reduced vibration, while a range of ergonomic, operator-focused features helps maximise productivity and operational efficiency.

The Bobcat 5-Series diesel forklift range offers rated load capacities from 6,000 kg to 9,000 kg, with powerful engines delivering 68–74 kW at 2,200–2,400 rpm. Travel speeds vary from 24.5 km/h to 36 km/h unloaded, depending on the model, providing the right balance of lifting strength and manoeuvrability for heavy-duty industrial operations.

Buy from Authrised Bobcat dealer in Melbourne
Mobile repair and maintenance team available, serving all Melbourne suburbs
Warranty 12 Months Major Drive Train
Free Delivery Melbourne Metro (Conditions apply)

Bobcat 5-Series Diesel Forklifts

Models & Capacities:

- D60S-5 – 6,000 kg

- D70S-5 – 7,000 kg

- D80S-5 – 8,000 kg

- D90S-5 – 9,000 kg

Load Centre: 600 mm
Maximum Fork Height: 3,000 mm (D60S-5 & D70S-5), 3,100 mm (D80S-5 & D90S-5)
Fork Dimensions:

- D60S-5 & D70S-5 – 1,200 × 180 × 60 mm

- D80S-5 & D90S-5 – 1,200 × 180 × 70 mm

Fork Spacing: Min. 410 mm / Max. 2,032 mm (D60S-5 & D70S-5) or 2,092 mm (D80S-5 & D90S-5)
Mast Tilt: 15° forward / 10° backward
Travel Speed (Unloaded): Up to 36 km/h depending on model
Lift Speed (Loaded/Unloaded): Up to 490 / 530 mm/s
Gradeability (Loaded at 1.6 km/h): Up to 42%
Engine Power: 68–74 kW @ 2,200–2,400 rpm
Maximum Torque: Up to 373 Nm @ 1,400–1,600 rpm
Engine Options: 4-cylinder (3,900 cc) or 6-cylinder (5,785 cc) diesel
Transmission: Autoshift (3F/3R) or Powershift (2F/2R)
Hydraulic Pressure: 210–235 bar (system) / 140 bar (attachments)
Tyres: Pneumatic – front/rear size varies by model (8.25x15-14PR or 9x20-14PR)
Turning Radius: From 3,331 mm to 3,680 mm depending on model
Overall Width: 2,108 mm (D60S-5 & D70S-5) or 2,230 mm (D80S-5 & D90S-5)
Ground Clearance (Loaded):

- Lowest Point – 176 mm (D60S-5 & D70S-5) / 258 mm (D80S-5 & D90S-5)

- Centre of Wheelbase – 205 mm (D60S-5 & D70S-5) / 329 mm (D80S-5 & D90S-5)

Service Weight (Unloaded): From 9,000 kg to 12,245 kg depending on model
Operator Type: Driver-seated with spacious cab for all-day comfort
Brakes: Hydraulic foot brake and mechanical hand brake

Specific Models

Bobcat D60S-5 – A 6,000 kg capacity diesel forklift designed for heavy-duty lifting, combining strong performance with excellent operator comfort.
Bobcat D70S-5 – A 7,000 kg capacity diesel forklift built for reliable handling of large loads, with low-emission engines and smooth operation.
Bobcat D80S-5 – An 8,000 kg capacity diesel forklift offering robust power and stability for demanding industrial applications.
Bobcat D90S-5 – A 9,000 kg capacity diesel forklift engineered for maximum lifting strength and efficiency in high-capacity operations.

Contact our Sales team on (03) 9762 4965 for more information or visit our showroom in Melbourne.
