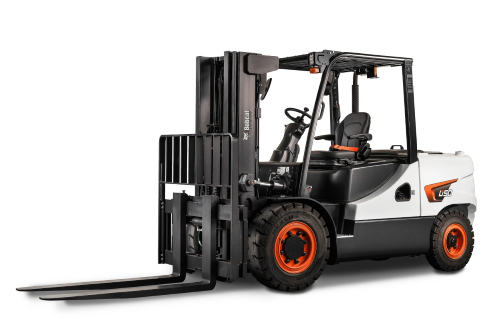

Bobcat 5-Series 3.5T-5.5T DIESEL

• Load Centre: 600 mm (S models); 500 mm (SC variants)
• Lifting Height (Range): D40S & D45S: 3,000–6,500 mm; D50C & D55C: 2,750–5,925 mm; SC variants: 3,000–6,500 mm
• Travel Speed: 25 km/h across all models
• Engine Type: DB58S or D439E with powershift transmission

Features & Operator Benefits

• Auto‑Tilt Leveling returns the mast to vertical, enhancing stacking safety and load quality

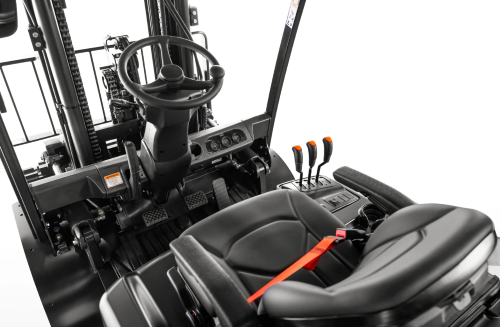

• Deluxe Suspension Seat offers six-way adjustment to reduce fatigue
• Top‑Mounted Control Valve ensures smooth gear changes and prolongs transmission life, plus easy-maintenance test ports
• Hydrostatic Steering with self-aligning taper roller bearings delivers responsive, durable control in harsh conditions
• Robust Drive Axle — cast-iron housing and alloy steel shaft for high torque and durability
• Enhanced Visibility through a wider mast window, optimised hose routing, and flat overhead guard
• Integrated Instrument Panel monitors fuel, oil, temperature, hours, mast interlocks, transmission, seat belt, and brake oil status
• Operator Comfort via legroom, tiltable steering, optimum pedal system (OPS) with electronic throttle, and personal storage

Safety & Reliability

• Parking Alarm and Seat Belt Indicator to improve operator safety adherence
• Intelligent Neutral Shift auto-shifts to neutral if operator leaves seat with engine running
• Rear Grab Bar with Horn (optional) for safer reverse operation without compromising grip
• Dual‑Element Air Cleaner prolongs engine life by ensuring clean airflow
• Easy Maintenance Design with fuse/relay box up front and tool-free access panels; oil‑cooled disc brakes reduce downtime and come with extended warranty

The 5‑Series 3.5–5.5 t range includes:

• D40S‑5 – 4,000 kg capacity
• D45S‑5 / D45SC‑5 – 4,500 kg capacity
• D50C‑5 / D50SC‑5 – 5,000 kg capacity
• D55C‑5 / D55SC‑5 – 5,500 kg capacity
