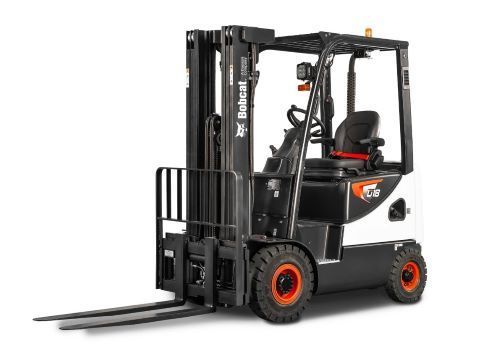

BOBCAT 5-SERIES 1.5-2T DIESEL

Key Specifications (Series Range)

• Load Capacity: 1,500–2,000 kg
• Engine: Kubota V2403 2.4 L diesel — low noise, fuel-efficient, and emission-compliant
• Rated Power: Approx. 34.2 kW @ 2400 rpm
• Max Torque: ~15.9 kg·m @ 1600 rpm
• Wheelbase: Around 1,400 mm
• Travel Speed (Unloaded): Up to 20 km/h
• Lifting Speed: ~600 mm/s loaded, ~630 mm/s unloaded
• Lowering Speed: ~500 mm/s loaded, ~450 mm/s unloaded
• Max Drawbar Pull (Loaded): Around 1,400 kg at 1.6 km/h
• Gradeability: Up to 32% loaded at 1.6 km/h
• Mast Options: Various lift heights with clear-view design for improved visibility
• Tires: Pneumatic industrial tyres suited to tough yard and warehouse conditions

Key Characteristics

• Robust Drivetrain – Power-shift transmission with top-mounted control valve for smooth gear changes and extended lifespan
• Heavy-Duty Drive Axle – One-piece cast-iron housing and high-tensile alloy steel shafts for durability under load
• Responsive Steering – Hydrostatic steering with self-aligning roller bearings for precise control
• Efficient Braking – Oil-cooled disc brakes with long service life and minimal maintenance

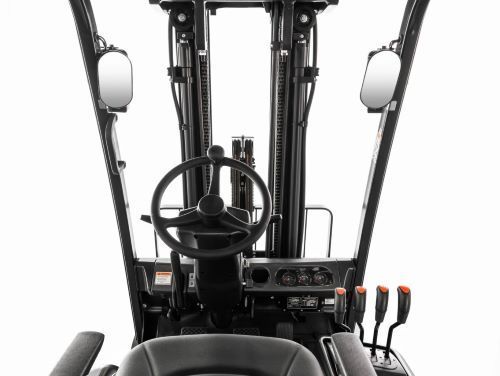

• Ergonomic Operator Space – Generous legroom, tilting steering column, and easy-reach controls
• Clear Instrument Panel – Displays fuel, temperature, oil pressure, mast interlocks, transmission status, and safety alerts

Safety Features

• Parking Brake Alarm – Warns operator if brake is not engaged before leaving seat
• Seat Belt Indicator – Prompts seat belt use for operator safety
• Automatic Neutral Shift – Cuts transmission drive if operator leaves seat while engine is running
• Rear Grab Bar with Horn – Improves reversing safety without requiring operators to remove hands from support

Serviceability & Maintenance

• Easy Access Panels – Tool-free removal for side covers and footplates
• Accessible Fuse and Relay Box – Located at the front of engine compartment
• Dual-Element Air Filter – Maximises engine protection and lifespan
• Simple Fluid Checks – Designed for quick daily inspections to reduce downtime

Why Buyers Choose the 5 Series

• Strong Performance – Delivers high torque at low speeds for heavy loads and ramps
• Fuel Efficiency – Kubota diesel engine optimised for low running costs
• Operator Comfort – Reduces fatigue and boosts productivity over long shifts
• Proven Reliability – Durable build designed for long service life in industrial conditions
• Low Total Cost of Ownership – Reduced maintenance needs, extended component life, and efficient operation
• Compliance Ready – Meets modern emission regulations for workplace safety and environmental responsibility

• D15S-5 - Kubota V2403 2.4 L diesel; power‑shift; hydrostatic steering ~1,500 kg
• D18S-5 - Same base but slightly higher spec in hydraulics, performance ~1,750 kg
• D20SC-5 - “SC” variant likely indicates a specialized mast or carriage; max load capability ~2,000 kg
